Mating planet gears
Confirm the mating tooth count, pitch system and pressure angle rather than identifying the sun gear in isolation.
SUN GEAR PRODUCTS

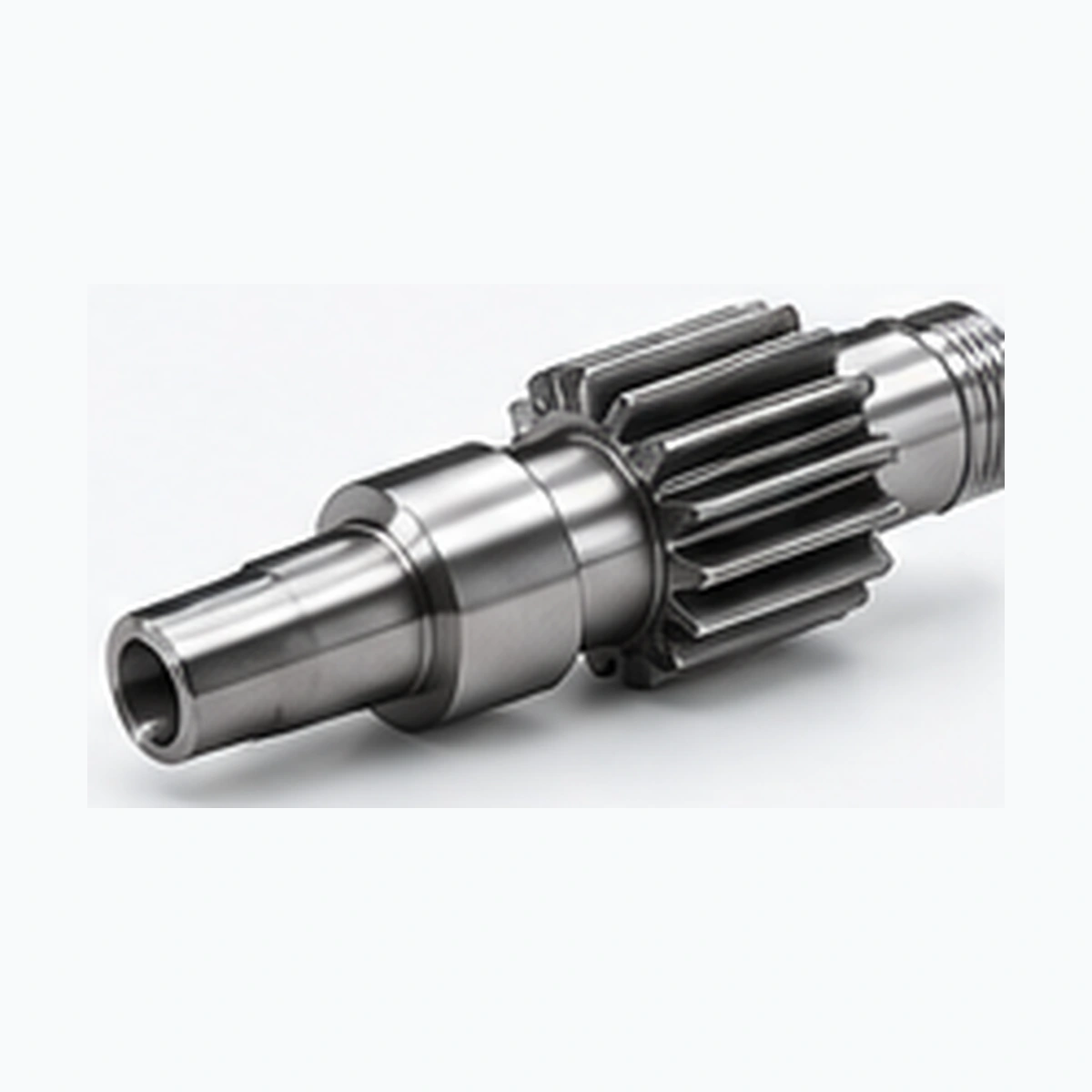

Sun Gear Shafts
Integrated gear-and-shaft components for planetary systems where gear teeth, journals, splines and retention features share one datum structure.
Sun Gear ShaftsPlanetary DriveCustom RFQ
Technical specification / ordering data
| Parameter | What to Specify |
|---|---|
| Gear section | Module/DP, pressure angle, tooth count and tooth finish. |
| Shaft journals | Diameters, fits, lengths and surface-finish requirements. |
| Spline / key / thread | Drive and retention features per drawing. |
| Bearing seats | Datum, shoulder and runout relationships. |
| Obróbka cieplna | Controlled with attention to gear and shaft requirements. |
| Inspection | Gear runout plus shaft/spline dimensional and geometric checks as specified. |
Selection points
These are the questions to close before production.
Concentricity & runout
Define the datum relationship among gear teeth, bore/spline/shaft and bearing seats.
Duty
Rated and peak torque, speed, reversals, shock and life influence material/process decisions.
Inspection
Agree the report content before production when tooth or interface verification is critical.
Replacement and custom projects
Integrated gear-and-shaft components for planetary systems where gear teeth, journals, splines and retention features share one datum structure.
For an existing sun gear shaft, measure the complete shaft stack-up including journals, shoulders, spline or key features and their runout to the gear teeth. Photos are useful for context, not dimensional approval.
Zapytanie ofertowe
Poproś o wycenę / Wyślij zapytanie ofertowe
Send the drawing, tooth data, mating-component information, duty and quantity. We will review the interface before quotation.
Minimalne zamówienieElastyczne ze względu na typ produktu i całkowitą wartość zamówienia.
PróbkiNew customers may request 1-5 pieces when the part and process are suitable.
Zamówienia mieszaneDifferent sun gear or related planetary-component models can be combined when the total order value is around USD 1,500 or above.
Małe zamówieniaOrders from 1-2 pieces can be discussed, normally with a higher unit cost.
DostawaStandard parts: 10-25 working days. Custom components: 20-45 working days. Project equipment: 45-120 working days.
Warunki handloweObsługiwane są powszechnie warunki EXW, FOB, CIF i DAP. Warunki FCA, CFR, CPT, CIP i DDP mogą być omawiane indywidualnie w każdym przypadku.
