Manufacturing & Quality for Gear Rack Projects
The manufacturing route should be chosen from the drawing and performance requirement. EVER POWER coordinates machining, heat-treatment, tooth finishing and inspection for the ordered configuration rather than publishing unsupported one-size-fits-all process claims.
Drawing ControlProcess PlanningInspection
From drawing to inspection

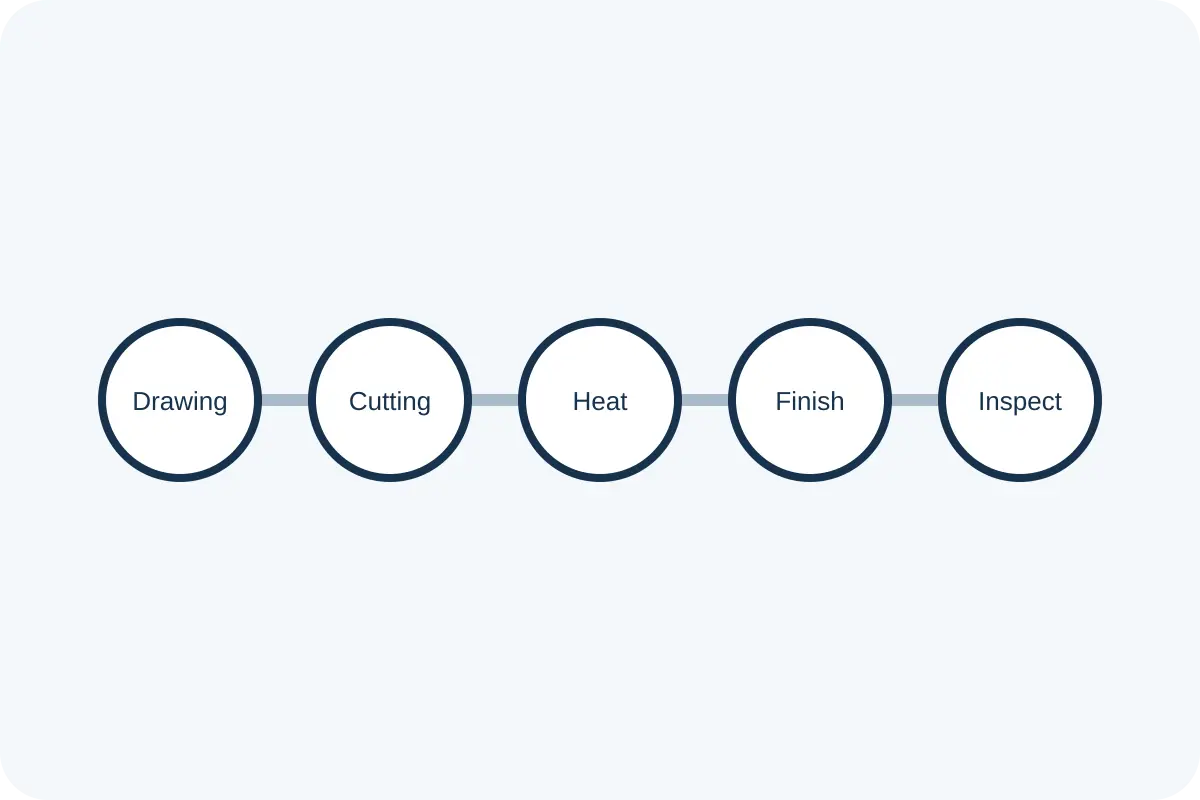

A rack project moves through a controlled sequence. The exact steps vary by material, heat treatment, tooth finish and required tolerance.
Process planning inputs
பொருள்
Specify grade and condition where material is a design requirement.
வெப்ப சிகிச்சை
State target hardness, case requirement or other acceptance criteria where applicable.
Tooth finish
Cut, hardened or ground tooth requirements must match the accuracy and duty target.
Datum & machining
Mounting faces, hole patterns and end features need clear references.
Inspection scope
Define what must be measured and which documents are required with the order.
Inspection follows the drawing
Useful inspection only exists when the drawing defines the requirement. Dimensional checks can cover the rack body, mounting interface and specified tooth-related tolerances. Material, heat-treatment or hardness records can be discussed when required by the order.
Typical manufacturing variables
| Specification | Project / ordering requirement |
|---|---|
| Rack geometry | Spur or helical; module/DP/CP; pressure angle; rack body section. |
| Machining | Tooth cutting plus project-specific hole/end/body machining. |
| வெப்ப சிகிச்சை | As specified for the ordered material and wear/load requirement. |
| Tooth finishing | Project-specific cut/hardened/ground requirement. |
| Surface protection | Only when called for by drawing or environment. |
| Inspection | Dimensional and tooth-related checks defined by drawing and order. |
Precision is a system property
Rack quality
Pitch and tooth geometry affect the linear tooth path.
Pinion quality
The mating pinion contributes its own errors and runout.
Mounting datum
An inaccurate machine surface can dominate the installed result.
Backlash setting
Mesh adjustment changes reversal behavior and load sharing.
Gearbox & bearings
Torsional stiffness and shaft support influence the complete axis.
Lubrication
Wear behavior depends on the actual duty and maintenance method.
Long rack runs need installation discipline
Segmented racks can extend travel without making one impossible-to-handle component. The benefit depends on controlled section alignment and joint continuity. Keep datum surfaces clean, use the defined alignment method and verify engagement along the full travel.
Documentation is agreed with the order
Do not assume a certificate or report is included simply because a product page mentions inspection. Tell us what the project needs—approved drawing, dimensional report, material document, hardness record or other agreed deliverable—so it can be included in the commercial review.
What we do not publish without evidence
We do not publish invented plant size, machine counts, market share, named end customers, unsupported certifications or guaranteed accuracy ranges. Project-specific capability is confirmed from the drawing and process review.
Use the RFQ to define the acceptance basis
குறைந்தபட்ச ஆர்டர் அளவுபொருளின் வகை மற்றும் மொத்த ஆர்டர் மதிப்பின் அடிப்படையில் நெகிழ்வுத்தன்மை கொண்டது.
மாதிரிகள்New customers may request 1-5 pieces when the part and process are suitable.
கலவையான ஆர்டர்கள்மொத்த ஆர்டர் மதிப்பு சுமார் 1,500 அமெரிக்க டாலர் அல்லது அதற்கு மேல் இருக்கும்போது, வெவ்வேறு ரேக், பினியன் அல்லது அது தொடர்பான மாடல்களை இணைத்துக்கொள்ளலாம்.
சிறிய ஆர்டர்கள்Orders from 1-2 pieces can be discussed, normally with a higher unit cost.
விநியோகம்Standard parts: 10-25 working days. Custom components: 20-45 working days. Project equipment: 45-120 working days.
வர்த்தக விதிமுறைகள்EXW, FOB, CIF மற்றும் DAP ஆகியவை பொதுவாக ஆதரிக்கப்படுகின்றன. FCA, CFR, CPT, CIP மற்றும் DDP ஆகியவை ஒவ்வொரு வழக்கைப் பொறுத்தும் விவாதிக்கப்படலாம்.
